The cafeteria of the EWI Faculty of Delft University of Technology has a lot of tables. These
tables are not square or rectangular, they have the form of a trapezoid, an isosceles trapezoid,
with sides 1,1,1,2, as in the drawing below. It can be seen as half a hexagon or as composed of
three equilateral triangles. Such a table offers place for five to sit, though at the acute angles there
is few space for plates.
For larger companies, the tables can be put together to form a larger table. The more tables are
used, the more shapes can be created. The other way round, one may ask whether a given shape

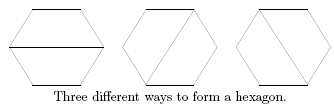

can be built with these tables and whether that can be done in more than one way. A hexagon
can be built from two tables in three different ways.
It could be argued that these three solutions may be reduced to a single solution, using rotation.
For this problem we consider these three solutions to be different, however.
The shapes to be formed are described using a pattern of triangles. The nodes in this pattern
have a code formed from 3 digits, in the range 0 ... 8. The sum of these three digits is 8. We
describe a shape by enumerating the nodes of its contour: [116, 314, 134, 125, 026]. The contour is
built connecting the nodes along the gridlines: connect the first node with the second node, the
second node with the third one, etc., and finally connect the last node with the first. This implies
that neighboring nodes are always on a common gridline.
The following rules apply:
The first line of the input file contains a single number: the number of test cases to follow. Each
test case has the following format:
For every test case in the input file, the output should contain a single number, on a single line:
the number of different ways of creating the given shape with the trapezoid tables.
2 6 107 206 215 125 026 017 5 116 314 134 125 026
3 0
